HI6600 - Weight Processor Modular Sensor System

HI6600 - Weight Processor Modular Sensor System

The new HI 6600 series is a modular system of weight processors that deliver up to 30 channels of fast, stable, high-resolution weight readings to PLCs, PACs, and DSCs over a single fieldbus network connection. NOTE: To configure a HI 6600 to add to a quote, under Communications select either EtherNet/IP or ProfiBus. To select HI6610s to add to a Quote, select HardyNet.

Complete Your System

Or call 858.278.2900 for assistance

New HI 6600 Series Modular Sensor System

The new HI 6600 series is a modular system of weight processors that deliver up to 30 channels of fast, stable, high-resolution weight readings to PLCs, PACs, and DSCs over a single fieldbus network connection.

Ideal for applications that require more than one channel of weight, such as inventory tank farms, batching systems, and multi-head filling machinery; each channel of the HI 6600 processes signals from up to four connected load cells and then outputs the entire system’s weight data over Ethernet TCP/IP, Modbus RTU, Modbus TCP and either EtherNet/IP or Profibus-DP, depending on the Hardy Gateway Module.

Book a One-on-One Virtual Demo to See the HI 6600 in action!

Take the HI6600 for a Test Drive

SOLID PERFORMANCE

The HI 6600 enhances the productivity of manufacturing systems by digitally suppressing noise and dramatically reducing scale settling time. Even in noisy environments with excessive amounts of mechanical vibration, the HI 6600 provides a steady 1:10:000 resolution in oz, lb, ton, g, and kg with 110 updates per second over its variety of communications protocols.

EASY INSTALLATION

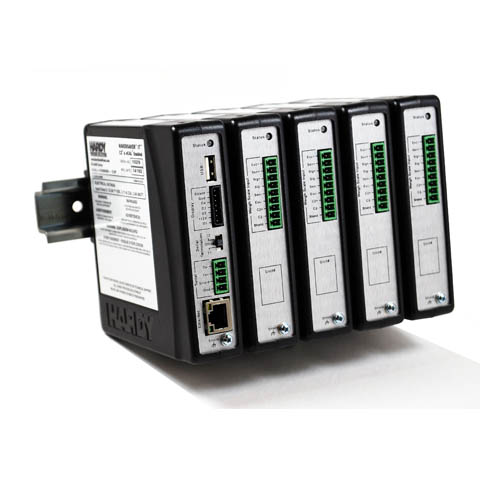

Just snap the number of weight channels you need onto a DIN rail, cable the units together to the Gateway Module using standard Cat5e cable, connect sensors, power up and press DISCOVER. The system will automatically identify all the modules connected together and make them addressable for set-up and calibration through the PLC, embedded Webserver, or optional display. A Rockwell EDS_AOP simplifies integration using RSLogix.

SIMPLE SET-UP & CALIBRATION

The embedded webserver enables access to setup and calibration from anywhere on your network. An optional display adds front panel keys, simple menus, and help text to make local control elementary. Use Hardy's exclusive C2® for automatic system calibration to save hours in commissioning and routine maintenance.

QUICK MAINTENANCE & DIAGNOSTICS

With INTEGRATED TECHNICIAN®, maintain and troubleshoot the weighing system from anywhere in the world or use Hardy’s intuitive local display that supports multiple languages. Store all the system parameters on a USB, clone settings between channels, and restore settings with the press of a button. Quick-disconnects on all wiring makes hot swapping damaged channels a snap!

OPTIONAL DISPLAY

Hardy’s big, bright display allows local set-up, calibration, and troubleshooting of the weight system without the need to access parameters via a PC, PAC, or PLC. Basic monitoring and maintenance can be done by anyone through its IP66 rated keypad. The display can show weight from up to 30 connected weight modules, displaying up to 4 channels simultaneously. Name the weight channels for easy identification and arrange them to show in any order.

ULTRA LOW POWER CONSUMPTION

At just 1.72 watts of power per channel and 3.9 watts per Gateway Module, eliminate the cost of cooling in the control cabinet and create high-density cabinet designs to save space and money.

VIBRATION IMMUNITY

Hardy’s WAVERSAVER® suppresses vibration and mechanical noise, dramatically reducing scale settling time and increasing the speed of stable weight readings.

The HI 6600 Series is available to order now! Contact your Hardy Sales Engineer or the Hardy Service Center today! 800-821-5831 or 858-278-2900. Email us at hardyinfo@hardysolutions.com

MODEL NUMBERS

HI 6600 SERIES

  • HI6610 Weight Processing Module, no display
  • HI6600-EIP HardyNet Gateway Module - EtherNet/IP
  • HI6600-DP HardyNet Gateway Module - Profibus-DP
  • HI6110 Optional Multi-Channel Display

Weight Processing Module (WPM)

Resolution

  • Stable processed weight 1:10,000
  • Maximum displayed resolution: 1:999,999
  • Internal resolution 1:8,388,608

Update Rate

  • Processed weight, display, comm: 110 times per sec.
  • Unprocessed weight (A/D conversion): 4800 Hz

Modes

  • Gross, Net

Units of Measure

  • Ounce, Pound, Ton, Gram, Kg, Metric Ton

Weight Processing

  • WAVERSAVER®: 0.25 Hz to 7.5 Hz
  • Averaging:1 to 255 User-selectable in single increments

Calibration Methods

  • C2® calibration without test weights
  • Traditional calibration with test weights

Power

  • HI 6610: 24 VDC, Class 2 Source, max 1.72 Watts

Excitation

  • 5VDC

Number of Load Cells

  • Up to 4 at 350 Ω per weight processing module

Hardy Gateway Module (HGM)

Expansion

  • Up to 30 weight processing modules per system*
  • Maximum System Span: 500 ft (150 m)*

*May require external 24VDC power. See User Guide for details.

HGM Available Protocols:

  • EtherNet/IP (-EIP models)
  • PROFIBUS-DP (-DP models)
  • Ethernet TCP/IP (Embedded Webserver) -- all models
  • Modbus RTU all models

Communication Interface:

  • Terminal (serial), RJ-45
  • USB setup and configuration saving

Power:

  • HI 6600: 12-24 VDC, Class 2 Source, max 3.9 Watts

Common Specifications

Dimensions

  • 4.55” D x 4.75”H x 1.25” W

Housing

  • High Strength ABS-Polycarbonate Blend

Mounting

  • DIN Rail with integrated clip

Interconnect Cable

  • RJ45 / Cat5e

Temperature

  • -10°C to +60°C (14° F to 160°F)
  • Temperature: • -10°C to +60°C (14° F to 160°F)

Humidity

  • 0-90% non-condensing

Environmental

  • IP30 rated

Certifications

  • Safety: UL & CUL, CE
  • EtherNet/IP ODVA Certification Level 3
  • Profibus-DP by Profibus.org
  • RoHS3 & REACH

Warranty

  • Two-year warranty against defects in workmanship

Optional Multi-channel Display

  • 80:1 contrast ratio with 4.3" effective viewing area
  • 140° viewing angle •
  • Control, configure, and view all WPMs on one front panel
  • Display keypad: IP66 5-Button Tactile
  • Display bezel rated to NEMA 4 when panel-mounted in a NEMA 4 or 4X enclosure
  • Dimensions: 0.75” D x 3.25”H x 7.5” W

* Specific configuration information is available in the HI 6600 User's Guide

Primary Communications

Secondary Network Option

Model # - HI6600 copy
