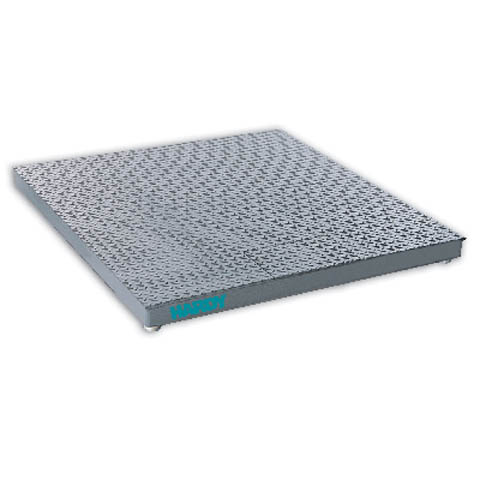

HIFS - Hardy Steel Industrial Low Profile Floor Scale

HIFS - Hardy Steel Industrial Low Profile Floor Scale

Hardy Process Solutions now has a new line of hazardous area, wash down, C2® floor scales at very competitive prices. These floor scales combine best-in-class durability with Hardy’s core features: weightless calibration (C2®) and operator diagnostics (INTEGRATED TECHNICIAN®). Hardy Floor Scales offer manufacturers multiple ways to reduce their maintenance costs and downtime.

Complete Your System

Or call 858.278.2900 for assistance

Certified for Use in Hazardous Areas

What does floor scale calibration REALLY cost you? The costs of downtime have increased by 65% over the past two years. Can you afford a floor scale that doesn’t have Hardy C2® weightless calibration or built-in diagnostics?

Hardy Process Solutions now has a new line of hazardous area, wash down, C2® floor scales at very competitive prices. These floor scales combine best-in-class durability with Hardy’s core features: weightless calibration (C2®) and operator diagnostics (INTEGRATED TECHNICIAN®). Hardy Floor Scales offer manufacturers multiple ways to reduce their maintenance costs and downtime.

All weight capacities come in stainless, painted carbon steel with smooth or tread deck. Each scale is complemented with a full range of accessories. We even offer custom sizes for those difficult applications.

Features & Benefits

Best-in-Class Durability

Rated for 250,000 – 300,000 loading cycles under normal loading.*

Easy to Install, Calibrate and Maintain

Hardy’s time-reducing C2 electronic calibration and IT operator diagnostics are standard features. This design eliminates potentiometers for corner adjustment reducing installation time.

Easy to Connect

Hardy Floor Scales pair easily with any Hardy Instrument or PLC module for full connectivity and control.

Full Complement of Accessories

48-inch Indicator Column, Portability Kits, Pit Frames, Fully Length Ramps, Bumper Guards with available mitered corners, Bolt-Down Plates.

All Capacities Available for Washdown and Hazardous Areas

The integrated summing box is sealed and has approval for use in the following hazardous areas:

  • Class I, Division 1, Groups A, B, C, D, T4; Zone 0, Group IIC, T4; Division 2, Groups A, B, C, D, T5
  • Class II, Division 1, Groups E, F, G, T4; Zone 20, Group IIIC; Division 2, Groups F, G, T5
  • Class III, Division 1, T4; Division 2, T5

Fill out our form get a quote today and add a rugged, Hardy Floor Scale to your plant floor. Or call our Hardy Service Center at 858-278-2900.

*Contact Hardy for further information.

Platform

  • 0.25" inch thick smooth or safety tread deck

Height

  • 4.0 inches (10.2 cm) deck height (adjustable 0.2” 5 mm)

Overload Capacity

  • 100% of rated scale capacity

End Loading

  • 100% of rated scale capacity

Cable Length

  • Platform to Instrument - 20 feet (for longer cable lengths, contact the factory)

Construction

  • Stainless Steel
  • Painted Carbon Steel

Paint

  • Acrylic Alklyd

Load Sensors

  • C2® stainless steel
  • Hermetically sealed
  • Blind hole loading

HI 6011 Summing Box Power Rating

  • 5 VDC, Class 2 source, max. 50 mA
  • For Class I and II, Division 1 Hazardous (Classified) Locations, and Class 1, Zone 0 and 2 Groups IIC, Zone 20 and 22 Groups IIIC, power must be supplied to the summing box through approved intrinsically safe barriers per control drawing 0594-0010

Summing Box Specifications

  • NEMA 4 Enclosure
  • Hardy 6011 Summing Card with 4 integrated individual load sensor terminal blocks with cable glands
  • INTEGRATED TECHNICIAN® circuitry

Certifications

  • UL. CE, CUL
  • RoHS3 and REACH Compliant
  • Approved for use in Hazardous Area Locations for US & Canada
    • Class I, Division 1, Groups A, B, C, D, T4; Zone 0, Group IIC, T4; Division 2, Groups A, B, C, D, T5
    • Class II, Division 1, Groups E, F, G, T4; Zone 20, Group IIIC; Division 2, Groups F, G, T5
    • Class III, Division 1, T4; Division 2, T5

Scale Excitation

  • 5vdc +/-5%

Optional Eye Bolts

  • 1/2 - 13 x 1-1/2”, 2-1/4” diameter eye

Duty Cycle

  • 250,000 load cycles under normal loading conditions*

Warranty

  • Two year limited warranty

*Contact Hardy for further information

Capacity

Finish

Platform Size

Deck Plate

Model # - HIFS copy
Or call 858.278.2900 for assistance

The Hardy Process Toolbox is a set of productivity tools that support industrial weighing functions. Each tool saves time, increases accuracy, improves efficiency, or reduces risk in process weighing applications, including WAVERSAVER® to eliminate vibration, C2® electronic calibration, and Integrated Technician® to name just a few.

The Hardy Lift Deck Floor Scales feature the following Toolbox technologies:

C2® Electronic Calibration

The Hardy C2® (or eCAL as it is known in China) core feature provides quick and easy electronic calibration of a weighing system without the need for heavy test weights. Unlike calibration with test weights, all the live weight on the scale does not have to be removed and heavy test weights do not have to be repeatedly put on and off the scale. As soon as your scale system is installed, it can be C2 or eCAL calibrated, and proper scale installation verified. The result is a calibration that is easier, quicker, safer, and typically more accurate.

INTEGRATED TECHNICIAN® Operator Diagnostics

Hardy's INTEGRATED TECHNICIAN (IT) core feature helps you troubleshoot your weighing system and diagnose problems from the front of the instrument or via the PLC. These tests display system weights, voltages, and pass/fail displays to help isolate a problem to the instrument, cabling, or sensors, helping to reduce maintenance costs.

Through the Hardy Weighing Instrument, the Hardy Floor Scales have access to the following additional technologies.

WAVERSAVER® Vibration Eliminator

Hardy's WAVERSAVER core technology eliminates the effects that surrounding vibration has on the scale weight signal, providing only true data for fast, accurate weight reading.

Embedded Web Server

Access your instrument from any computer browser, easing setup and making diagnostics fast and easy. Use the Embedded Web Server to set up all parameters from anywhere on the Ethernet network.

Secure Memory Module Stores Configuration Data

Hardy's Secure Memory Module (SMM) uses a standard SD card to automatically back up critical weighing system data, allowing you to transfer it to another like controller in a few minutes. You can also use the card to easily back up your controller data onto a PC.
